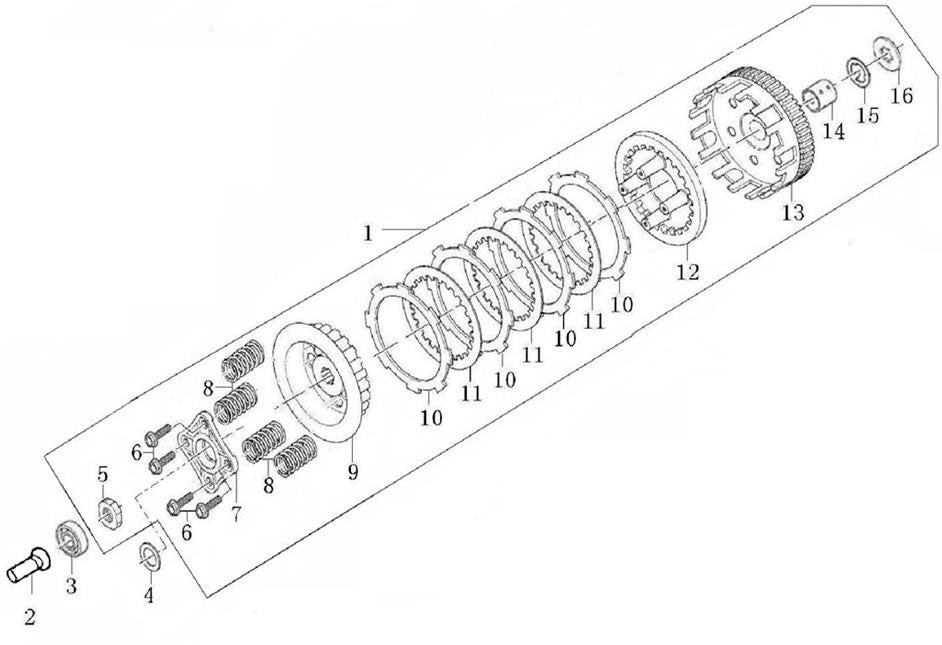

110 4-Speed Clutch Assembly
110 4-Speed Clutch Assembly
Ref | Part # | Part | Price |
1 | 01.SZ.0401.L | CLUTCH ASSY | $93.99 |
2 | 01.SZ.0402.L | PUSHING ROD, CLUTCH | $6.99 |
3 | 01.SZ.0403.L | BEARING (6000) | $5.99 |
4 | 01.SZ.0404.L | DISH WASHER, CLUTCH | $2.99 |
5 | 01.SZ.0405.L | LOCK NUT, CLUTCH | $2.99 |
6 | 01.SZ.0406.L | PLATE FIXING SCREW | $1.99 |
7 | 01.SZ.0407.L | END COVER,CLUTCH | $12.99 |
8 | 01.SZ.0408.L | SPRING SET, CLUTCH | $26.99 |
9 | 01.SZ.0409.L | CENTER SLEEVE, CLUTCH | $20.99 |
10 | 01.SZ.0410.L | SET DRIVE FRICTION DISK | $40.99 |
11 | 01.SZ.0411.L | SET OUTER FRICTION DISK A | $40.99 |
12 | 01.SZ.0412.L | PRESSURE PLATE, CLUTCH | $20.99 |
13 | 01.SZ.0413.L | OUT CASE ASSEMBLY, CLUTCH | $33.99 |
14 | 01.SZ.0414.L | SLEEVE, CLUTCH | $6.99 |
15 | 01.SZ.0415.L | FIXING RING, CLUTCH | $6.99 |
16 | 01.SZ.0416.L | WASHER | $1.99 |
