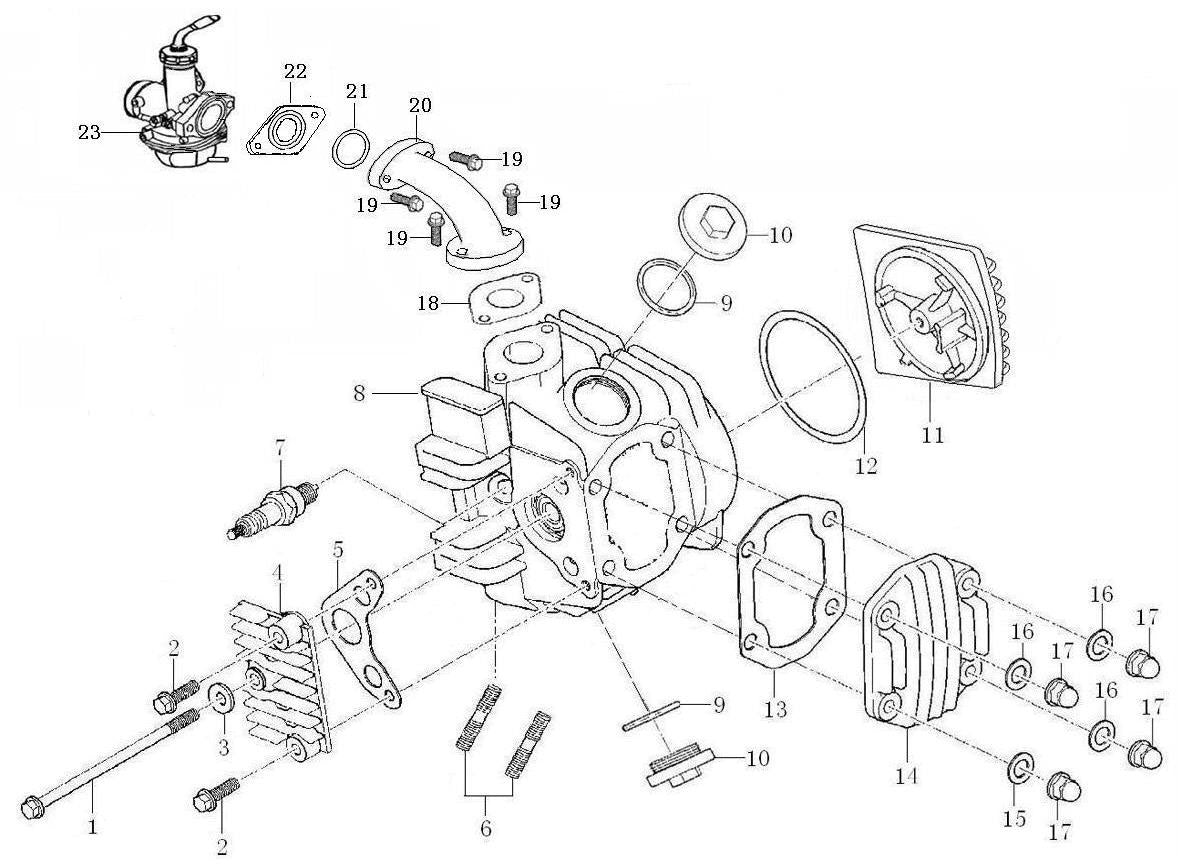

110A Cylinder Head Assembly
110A Cylinder Head Assembly
| Ref | Part | Part # | Price |
| 1 |
BOLT M6×110 |
01.SB.0101.L | $5.99 |
| 2 | BOLT M6×20 | 01.SB.0102.L | $2.99 |
| 3 | WASHER 6.5×1×12 | 01.SB.0103.L | $1.99 |
| 4 | RIGHT COVER, CYLINDER HEAD | 01.SB.0104.L | $5.99 |
| 5 | GASKET,R.CYLINDER HEAD COVER | 01.SB.0105.L | $4.99 |
| 6 | BOLT M6×32 | 01.SB.0106.L | $2.99 |
| 7 | SPARK PLUG | 01.SB.0107.L | $10.99 |
| 8 | CYLINDER HEAD ASSY | 01.SB.0108.L | $117.99 |
| 9 | O-RING 29.6×3.2 | 01.SB.0109.L | $4.99 |
| 10 | COVER, VALVE CHAMBER | 01.SB.0110.L | $4.99 |
| 11 | LEFT COVER, CYLINDER HEAD | 01.SB.0111.L | $16.99 |
| 12 | GASKET,L,CYLINDER HEAD COVER | 01.SB.0112.L | $4.99 |
| 13 | GASKET, CYLINDER HEAD UPPER COVER | 01.SB.0113.L | $4.99 |
| 14 | UPPER COVER, CYLINDER HEAD | 01.SB.0114.L | $5.99 |
| 15 | WASHER 7.3×2.5×14 | 01.SB.0115.L | $1.99 |
| 16 | WASHER 7.3×2.5×14 | 01.SB.0116.L | $1.99 |
| 17 | NUT M7 | 01.SB.0117.L | $2.99 |
| 18 | INLET GASKET 110A | 01.SB.0118.L | $3.99 |
| 19 | SCREW M6X25 | 01.SB.0119.L | $2.99 |
| 20 | INLET PIPE 110 | 01.AS.0202.L | $25.99 |
| 21 | O-RING | 01.AS.0205.L | $3.99 |
| 22 | PLASTIC FLANGE | 01.AS.0203.L | $8.99 |
| 23 | CARBURATOR KF 19 | 01.AS.0200.L | $70.99 |
