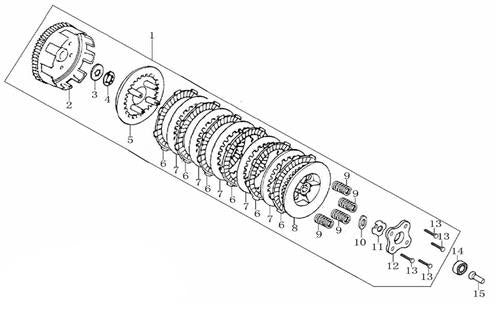

160 4-Speed Clutch Assembly
160 4-Speed Clutch Assembly
Ref | Part # | Part | Price |
1 | 01.SW.0401.L | CLUTCH ASSY | $104.99 |
2 | 01.SW.0402.L | OUT CASE ASSEMBLY,CLUTCH | $37.99 |
3 | 01.SW.0403.L | WASHER | $5.99 |
4 | 01.SW.0404.L | POINTED WASHER | $6.99 |
5 | 01.SW.0405.L | CLUTCH PLATE | $1.99 |
01.MO.0040.L | FRICTION DISC SET | $53.99 | |
7 | 01.SW.0407.L | SET OUTER FRICTION DISK A | $44.99 |
8 | 01.SW.0408.L | CENTER SLEEVE,CLUTCH | $22.99 |
9 | 01.SW.0409.L | SPRING SET, CLUTCH | $29.99 |
10 | 01.SW.0410.L | WASHER | $4.99 |
11 | 01.SW.0411.L | CLUTCH LOCK NUT | $5.99 |
12 | 01.SW.0412.L | END COVER,CLUTCH | $13.99 |
13 | 01.SW.0413.L | PLATE FIXING SCREW | $1.99 |
14 | 01.SW.0414.L | BEARING (6000) | $5.99 |
15 | 01.SW.0415.L | PUSHING ROD, CLUTCH | $6.99 |
