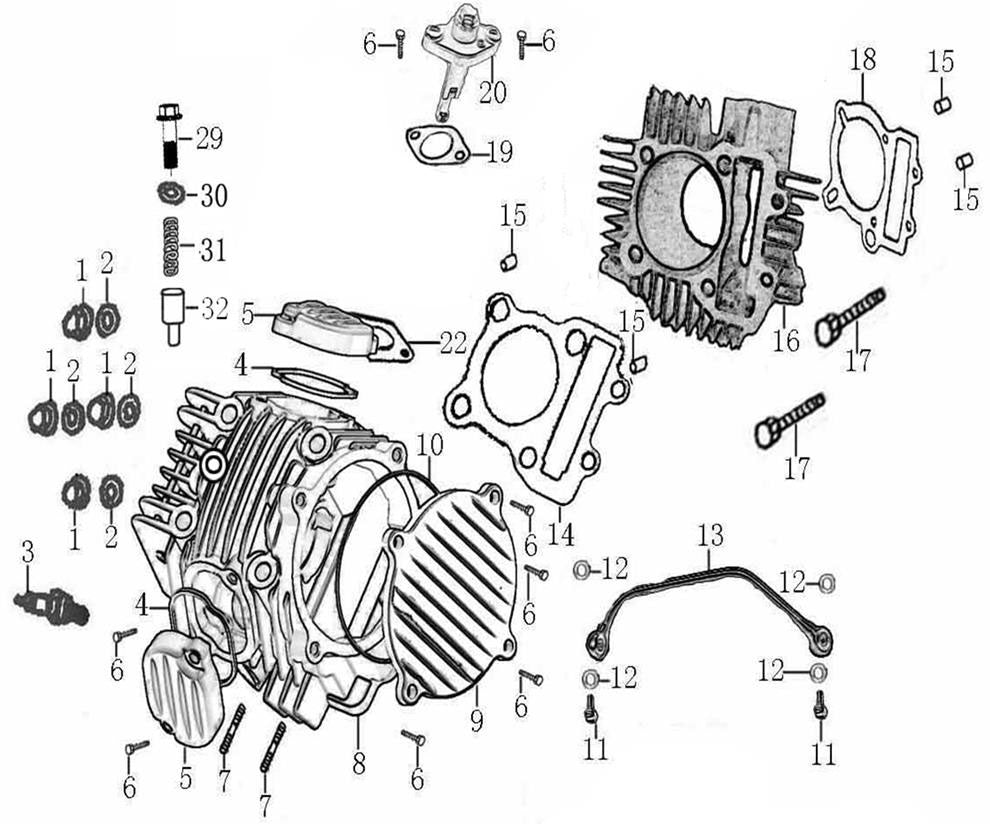

160 4-Speed Cylinder Head Assembly

160 4-Speed Cylinder Head Assembly

Ref Part # Part Price
1 01.SW.0101.L NUT M8 $7.99
2 01.SW.0102.L WASHER 8.5×2×18 $2.99
3 01.MO.0016.L SPARK PLUG NGK C7 HSA $12.99
4 01.SW.0104.L RING  $5.99
5 01.SW.0105.L COVER, VALVE CHAMBER $13.99
6 01.SW.0106.L BOLT M6×18 $2.99
7 01.SW.0107.L BOLT M8×45 $5.99
8 01.SW.0108.L CYLINDER HEAD ASSY $147.99
9 01.SW.0109.L LEFT COVER, CYLINDER HEAD $20.99
10 01.SW.0110.L SEAL RING $5.99
11 01.SW.0111.L BOLT M8×23 $4.99
12 01.SW.0112.L WASHER 8.2×1×14 $1.99
13 01.SW.0113.L FUREL PIPE $22.99
14 01.SW.0114.L GASKET ASSY,CYLINDER HEAD $11.99
15 01.SW.0115.L PIN 10×14 $3.99
16 01.SW.0116.L CYLINDER BLOCK ASSEMBLY $118.99
17 01.SW.0117.L BOLT M6×105 $4.99
18 01.SW.0118.L GASKET,CYLINDER BLOCK $11.99
19 01.SW.0119.L GASKET,TENSIONER $5.99
20 01.SW.0120.L PLUG OF TIGHTENER $41.99
22 01.SW.0122.L GASKET,INLET PIPE $3.99
29 01.SW.0129.L BOLT M6×12 $2.99
30 01.SW.0130.L WASHER 6.2×1.5×13 $1.99
31 01.SW.0131.L SPRING $4.99
32 01.SW.0132.L CYLINDER HEAD TAPPET $4.99
