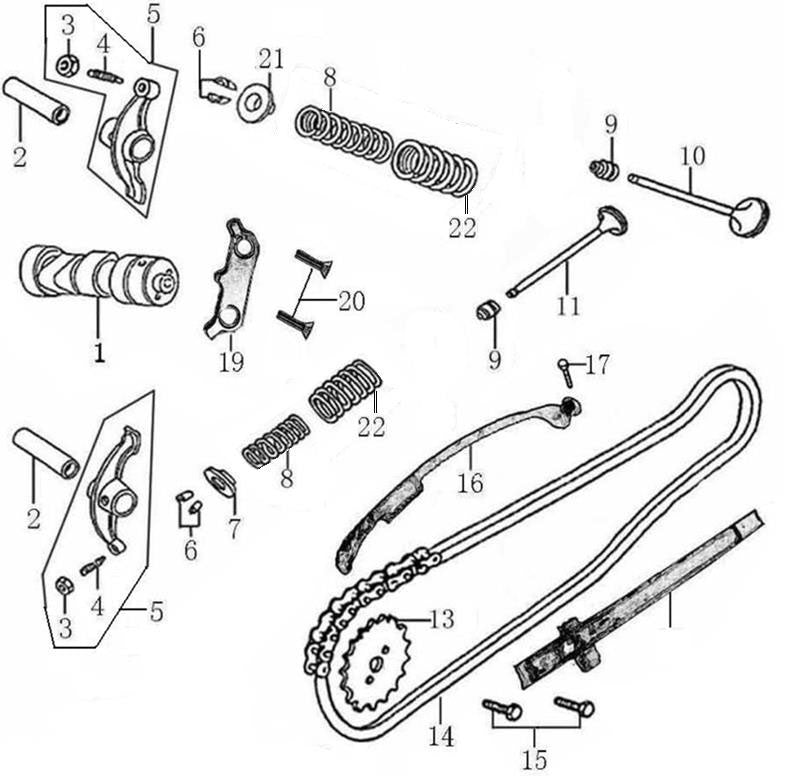

160 4-Speed Valve Mechanism

160 4-Speed Valve Mechanism

Ref Part # Part Price
1 01.SW.0201.L GAMP SHAFT COMP $74.99
2 01.SW.0202.L ROCKER SHAFT $13.99
5 01.SW.0205.L ROCKER ARM ASSEMBLY, VALVE $34.99
6 01.SW.0206.L VALVE LOCKER $2.99
7 01.MO.0065.L SPRING SEAT OHVALE $28.99
8 01.SW.0208.L VALVE INNER SPRING $11.99
9 01.SW.0209.L SEAL, VALVE STEM $6.99
10 01.SW.0210.L INTAKE VALVE $23.99
11 01.SW.0211.L EXHAUST VALVE $23.99
12 01.SW.0212.L GUIDE PLATE  CHAIN $17.99
13 01.SW.0213.L TIMING DRIVEN SPROCKET $29.99
14 01.SW.0214.L SPROCKET CHAIN $37.99
15 01.SW.0215.L BOLT M6×12 $2.99
16 01.SW.0216.L TENSION PLATE ASSY $19.99
19 01.SW.0219.L STOP PLATE, CAMSHAFT $5.99
20 01.SW.0220.L SCREW M6×12 $2.99
22 01.MO.0051.L VALVE OUTER SPRING OHVALE $28.99
