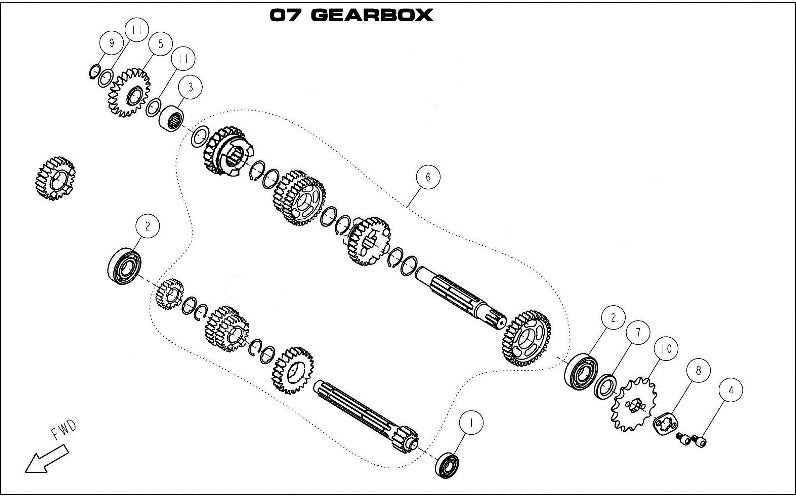

190 / 212 Transmission Mechanism
190 / 212 Transmission Mechanism
| Ref | Part # | Part | Price |
| 1 | 01.SD.0701.L | BEARING #6001 | $14.99 |
| 2 | 01.SD.0702.L | BEARING #6203 | $17.99 |
| 3 | 01.SD.0703.L | BEARING NK152712 | $21.99 |
| 4 | 01.SD.1102.L | BOLT, HEXAGON SOCKET M6x10 | $1.99 |
| 5 | 01.SD.0705.L | GEAR IDLE, STARTER | $35.99 |
| 6 | 01.SD.0706.L | GEAR, COMP, 4-SPEED | $261.99 |
| 7 | 01.SD.0707.L | OIL SEAL, Φ29xΦ17x5 | $5.99 |
| 8 | 01.SD.0708.L | PLATE, FIXING SPROCKET DRIVE | $3.99 |
| 9 | 01.SD.0709.L | RETAINING RING Φ13.6 | $3.99 |
| 10 | 01.OT.0006.L | SPROCKET, DRIVE 17T | $17.99 |
| 11 | 01.SD.0711.L | WASHER, Φ22xΦ15x0.5 | $1.99 |
