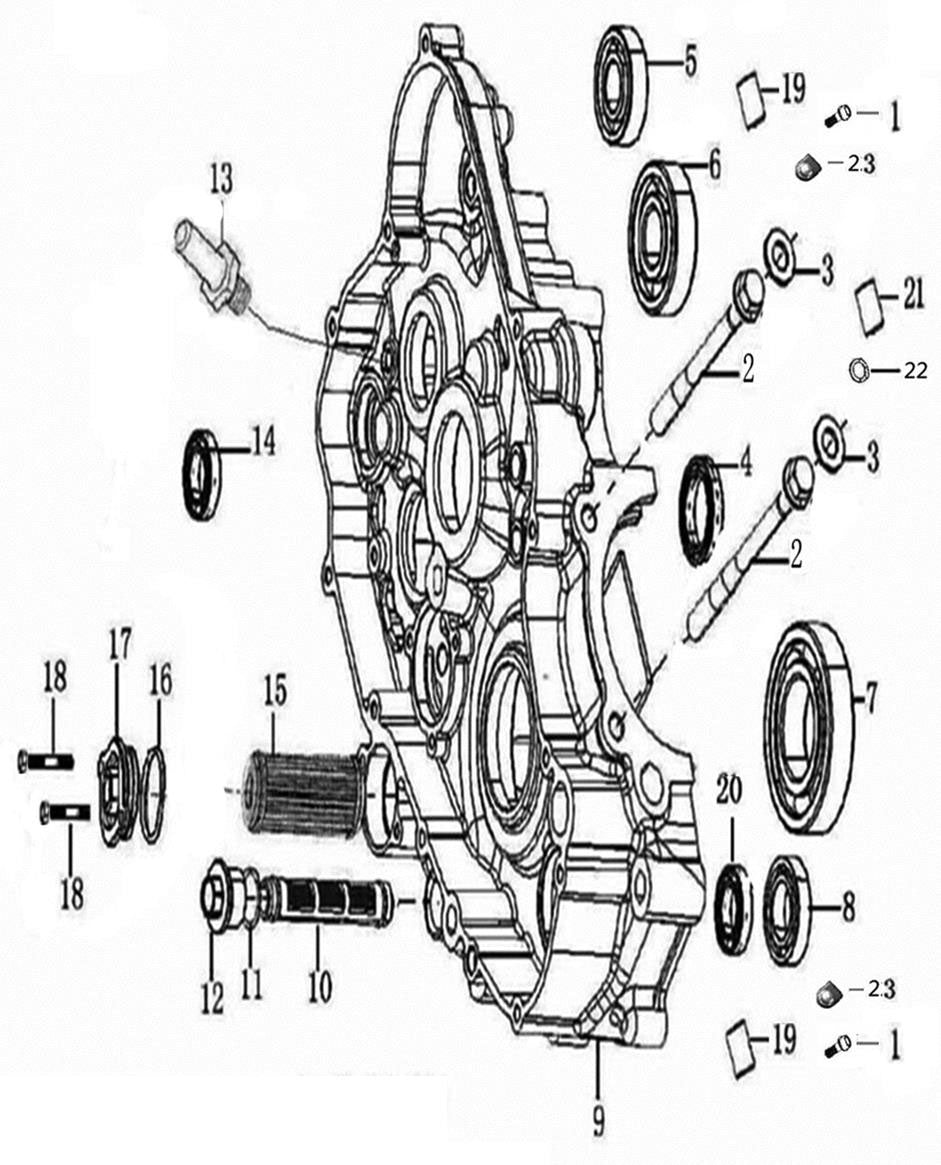

RS250 Engine SP-1 Right Crankcase
RS250 Engine SP-1 Right Crankcase
| Ref | Part # | Part | Price |
| 1 | 02.SR.0829.L | Bolt, M6×10 | $1.99 |
| 2 | 02.SR.0823.L | Bolt | $7.99 |
| 3 | 02.SR.0822.L | Washer,φ10.5×2×φ20 | $1.99 |
| 4 | 02.SR.0815.L | BeaRing,(61805) | $14.99 |
| 5 | 02.SR.0817.L | BeaRing,(6203Jr2C3) | $15.99 |
| 6 | 02.SR.0906.L | BeaRing,(6304) | $17.99 |
| 7 | 02.SR.0907.L | BeaRing,(6207Jr2Luc3) | $36.99 |
| 8 | 02.SR.0819.L | BeaRing,(Csb204_Jr2C3) | $35.99 |
| 9 | 02.SR.0909.L | Assm.Right Crankcase | $124.99 |
| 10 | 02.SR.0808.L | Strainer Oil Filter | $5.99 |
| 11 | 02.SR.0807.L | O-Ring,φ17.5×1.8 | $0.99 |
| 12 | 02.SR.0806.L | Cover Oil Filter Screen | $4.99 |
| 13 | 02.SR.0913.L | Bolt Return Springn Fixing | $1.99 |
| 14 | 02.SR.0814.L | Bearing, 61902 | $9.99 |
| 15 | 02.SR.0915.L | Oil Filter | $19.99 |
| 16 | 02.SR.0916.L | O-Ring,φ30×2.6 | $1.99 |
| 17 | 02.SR.0917.L | Cap Oil Filter | $4.99 |
| 18 | 02.SR.0918.L | Bolt, M6×16 | $1.99 |
| 19 | 02.SR.0201.L | Dowel Pin,φ13×14 | $1.99 |
| 20 | 02.SR.0920.L | Oil Seal 20×35×5 | $4.99 |
| 21 | 02.SR.0310.L | Dowel Pin,φ8×12×φ6.3 | $1.99 |
| 22 | 02.SR.0922.L | O-Ring,φ6.5×1.9 | $3.99 |
| 23 | 02.SR.0828.L | Baffle | $1.99 |
